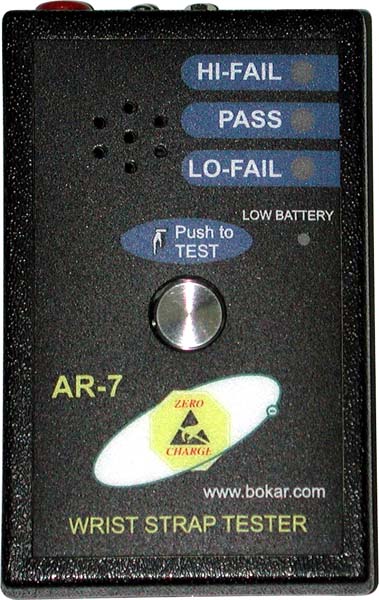

AR-7 - Wrist Strap Tester |
- Built in SMT technology for reliability.
- Microprocessor controlled for accuracy.
- Dependable and simple.
- Pass tone is easy to hear.
- Visual indicators show pass, low or high fail.
The wrist strap tester system was created to fill a growing
demand for a dependable, easy-to-use test mechanism for personnel
grounding devices. It is available as a 750-kohm to 10-Mohm tester (U.S.
standard) and 750-kohm to 35-Mohm tester (European standard).
Model operates on a 9-volt battery. Low battery indicator
illuminates red when battery voltage is too low for accurate
measurement. Connections include 4 mm press stud, banana socket and 6 mm
stud for coil cord clip connection. The tester dimensions are 3.75"
x 2.5" x 1" and weight is 4.5 ounces including battery.
- Wrist strap tester, manual and 9V battery
|
Part Number |
|
AR-7A (U.S.A. Parameters) |
AR-7E (European Parameters) |
| Pass Level |
750 kohm-10 Mohm;
green light and audible tone |
750 kohm-35 Mohm;
green light and audible tone |
| Low Fail |
< 750 kohm;
yellow light no tone |
< 750 kohm;
yellow light no tone |
| High Fail |
> 10 Mohm;
red light no tone |
> 35 Mohm;
red light no tone |
| Dimensions |
3.75" x 2.5" x 1" (95
x 63 x 25 mm) |
| Weight |
4.5 oz 127g |
- 4 mm banana plug
- 4 mm snap
- Crocodile clip
|
