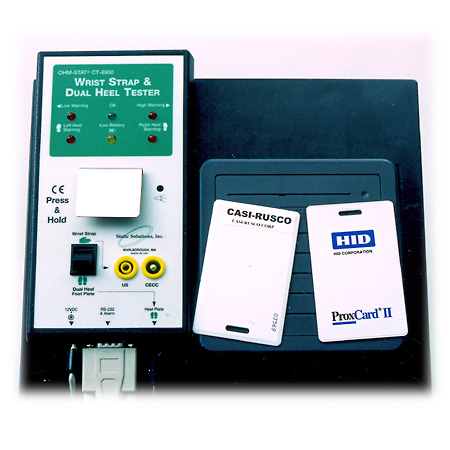

CT-8900
Combination Data Logger Tester

The CT-8900 individually and simultaneously tests, prints, stores, and e-mails each wrist strap and heel grounder resisitivity value in less than 3 seconds. Used at manufacturing companies internationally and domestically, it offers adjustable limits, exact resisitivity readings, unique report generation groups, versatile networking options, an expandable employee log of 5000, and is fool-proof. It accepts mag stripe, barcode, HID, Casi-Rusco ID cards as well as keyboard entry. Complete with user-friendly software, this unit is the most accurate and thorough combination-data logger available on the market.

Included ESD Protection Test Log software generates Email reports to multiple recipients. Email reports include:

  • Employee failure exception
  • Monthly, daily, entire log
  • ESD training certification expiration
  • Employee attendance/vacation

Logs are easily imported into spreadsheet/database programs

  • Accepts and displays international dates/times
  • Software and employee information can be password protected
  • Able to prevent unauthorized entry without proper ID/ESD certification
  • Can be upgraded to allow electronically locked doors to open, or bells to ring, when users pass a test

Data Sheet

Instruction Manual



Combination Data Logger Tester

Features:

  • Low costs
  • Tests wrist strap and heel grounders individually and simultaneously
  • No switch flipping or foot changing
  • Eliminates cheating
  • Automatic calibration, adjustable resistivity limits
  • Large full color pass/fail result message is easily viewed on monitor
  • Opens doors
  • Prints labels
  • Connects easily with LAN networks-data is safe if network fails
  • Measures from 100 kilohms to 100 megohms, with an option to 1000 megohms
  • Conforms to US EOS-20/20 standard and European standard
  • Accepts up to 5000 employees as many times per day (expandable), automatic download and email of data
  • Notifies user when a yearly ESD re-certification is due.
  • New employees are easily added through a series of prompts
  • Compatible with Microsoft 95, 98, ME, WINNT, and Windows 2000 operating systems
  • Used worldwide, made in the USA
